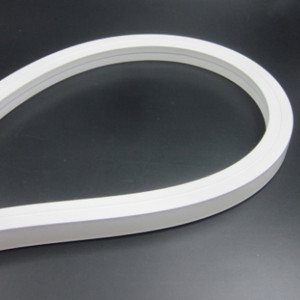

Flexible multicolored neon with dynamic effects 16 x 16 mm 60 leds/m - 1200 Lumens/m - 3 leds/pixel - Front lighting

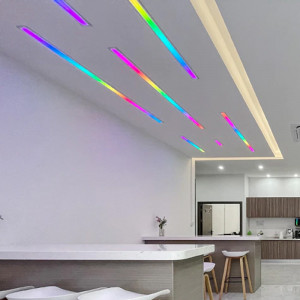

Multicolored RGB flexible neon with dynamic effects (Magic) allowing you to create colorful ambient lighting with active animations.

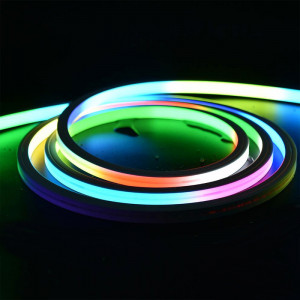

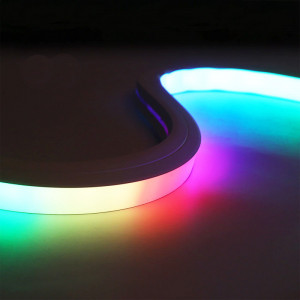

It allows you to obtain rainbow effects with gradients, chases, scrolls and a whole host of other animations.
Depending on the controller used, you can make the ribbon react to the rhythm of the music, and even program your own animations, à la carte.

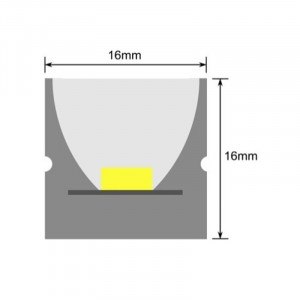

This flexible neon is used to produce front lighting over a width of 16 mm, with a better distributed light than on a classic led strip, thanks to the opaque structure of the neon.
It is generally used to illuminate in a straight line, even on a rounded surface.

Flexible neon lights do not have double faces. They should be fixed with the clips provided.

The strip is powered by 12V DC and can be cut in groups of 3 leds, i.e. every 5 cm.
Waterproof IP65, it can be used outdoors without any problem.

The neon requires the use of a specific controller for Magic led strips.

This strip is controlled by groups of 3 LEDs (1 pixel).
Led strips of 5 meters can be chained together thanks to the clip connectors provided. The animation will extend over the total length of the connected strips, with however the limitation of the number of pixels managed by the chosen controller (see the characteristics of the controller according to your total length of strips).

Important: Be sure to supply each 5-meter strip with 12V (by connecting them directly to the power supply) independently of the controller. See login photo.

Compose your kit ready to use

Strip only	For the ribbon to work, you must have a power supply 12V 100W minimum. If you do not already have one, you must add a power supply to the essential accessories. Otherwise, you can acquire the ribbon alone.
Power supply kit + ribbon +	Minimal kit to make your led strip work. It connects to the 230V mains and the led strip to the 12V output of the power supply. Add the power supply to the list of accessories.
Power supply kit + controller + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 dynamic effects controller 300 programs with remote control You will get a complete kit that comes with a remote control to turn on, off and dim the light intensity and change the animations.
Power supply kit + Wifi controller + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 Wifi dynamic effects controller with remote control With this complete kit, you can turn on, turn off, vary the light intensity, select animations, compose your programs, operate the tape to the rhythm of the music, with the remote control, in Wifi or with Google and Alexa voice assistants.
Power supply kit + DMX controller + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 DMX controller for led strip with dynamic effects Complete kit operating in DMX (excluding console). The DMX controller allows you to control the LED strip, pixel by pixel, in order to obtain à la carte animations, according to the DMX sequences programmed on your console. 3 channels are required to drive a single pixel, or 60 channels per meter for this ribbon. LTech brand controller for professionals for intensive and durable use.

Flexible neon lights with front lighting

This type of tape called Top View can only be bent lengthwise, with front lighting.
It can be placed on a rounded surface, for example, around a column or a bar counter, with a face light.

Efficacy (Lumens/W output) and brightness are much better than side-lit neon lights.

The multicolored ribbons with dynamic effects (WS2811)

This headband requires a specific controller to run the light animation programs.

The 3 wires, red (+), green (DAT), and black or white (GND/-) are to be connected at the start of the ribbon (see the direction of the arrows on the strip) as follows:

When several 5-meter strips are chained one after the other, it is essential to connect the additional strips to the 12V power supply.
The reel has 3 wires, often connected to a clip-on connector (control circuit), as well as 2 additional white and red wires (power circuit), used to connect to the power supply.
Here is how to do the wiring:

Precautions to take when handling and installing a led strip

The led strips can be curved lengthwise by describing a minimum radius of 10 cm.
Under no circumstances can they be folded sideways.

If you need to make 90° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by welding flexible cable (flat cable) between the 2 sections.

Do not bend the led strips or distort them:
