UV led tape black light 240 leds / m for shows and nightclubs

Ref : SBL2835-240-IP20 [#93]

Rating: Sign in to write a review

€114.58

Tax excluded

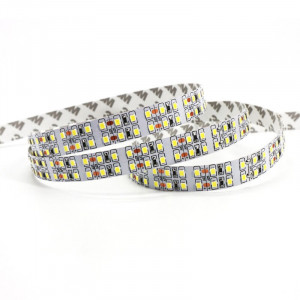

UV led strip 5 meters black light SMD2835 24V 240 leds / m 385 to 400 nm not waterproof IP20

Accessories to compose your kit

Led strips accessories

	Transformer for led strips 24V 12.5A 300W on terminal block	Power supply 24V 12.5A 300W €24.29
	Led dimmer with remote control Radio frequency 12A	Led dimmer with 144W remote control €16.87

Products guaranteed for 3 or 5 years

Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Ultra-low consumption :	No
Type of lighting :	Atmosphere and decor
Color :	Black light
Voltage :	24V
Waterproof :	Not waterproof
Lighting direction :	Front view

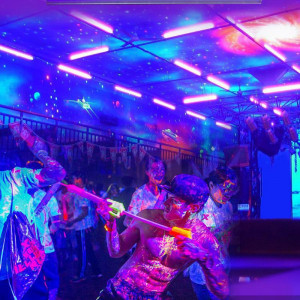

This led tape is used to produce black light in nightclubs, escape games or shows.
Black light (UV 385 at 400 nanometers) brings out vivid colors leaving dark colors in the dark.

The strip is powered by 12V DC and can be cut in groups of 6 LEDs, or every 2.5 cm.

Not waterproof, it can only be used indoors, except kitchens and bathrooms.

Compose your ready-to-use kit

Ribbon only	For the ribbon to work, you must have a minimum 24V 300W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit +	Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 24V output of the power supply. Add the power supply in the list of accessories.
Power supply + drive + ribbon kit + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 dimmer with remote control You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Equipment guaranteed for 3 years intended for professionals and individuals for intensive use.

Supply voltage	24V DC
Type of led	SMD 2835
Number of leds per meter	240 (2 rows of 120)
Colors	UV black light 385 to 400 nm
Brightness	-
Efficiency	-
Consumption	48W per meter
Dimmable	Yes (PWM)
Attenuation	2% after 6000 hours
CRI	-

Lighting angle	120 °
Lifetime	50,000 hours (at 45 ° C)
Waterproofing	Not waterproof IP20
Dimensions	5000 x 15 x 1.5 mm
Cutout	Every 2.5 cm
Temperature range	- 25 to 45 ° C
PCB	1 oz (35u) copper
Adhesive	3M VHB
Certifications	CE, RoHS EN60598-2-20: 2015 EN 60598-1: 2015 EN 62471: 2008 EN 62493: 2015 EN 62031: 2008 + A1: 2013 + A2: 2015
Guarantee	3 years

Wiring of white ribbon with single color ribbons

These headbands, the simplest, only have 2 threads (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.

Connection of a single color led tape on power supply

They can be coupled to a dimmer to turn on, off and vary the brightness with a remote control.

Connection of a single color led tape with dimmer

With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.

To overcome this, it is possible to have several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or to the controller.

Here is the wiring diagram of several bands with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.

Connection of 2 led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you have to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between the 2 sections.
