ZIGBEE + RF 15A controller for led strips 1 color, variable white, RGB, RGBW and RGB+CCT

This controller is used to control led strips:

• - single color
• - variable white (CCT)
• - multicolor (RGB)
• - multicolor + white (RGBW)
• - multicolor + variable white (RGB+CCT)

This product requires the use of a Zigbee 3.0 gateway in order to function.

A single Zigbee adapter is required to control up to 50 or 128 light devices (controllers) depending on the gateway model chosen: See the list in the accessories to complete your kit.

The advantages of Zigbee:

• - The Zigbee gateway allows you to establish connections with all lighting controllers, up to 128 devices, without saturating your Wifi network.
• - The Zigbee 3.0 protocol offers incomparable stability, without stalling or untimely disconnections, over a radius of 100 meters (free field).
• - Energy efficient wireless technology.

The receiver can be controlled:

• - in ZIGBEE with your phone or tablet
• - by remote control (optional)

It accepts up to 15A, i.e. 180W at 12V, or 360W at 24V.

If the power of your light device exceeds that of the controller, it is possible to use several receivers or to use amplifiers.

Install the Tuya Smart app on your phone.
>Once the application is launched, search for all light devices in the network and register them on the application.
You can then view the status of each light (lamps, LED strips, etc.) and control them as you see fit.

The application offers the following features:

• - Biorhythm: Follows the schedules of the sun to adapt the lighting
• - Scenes: Reading mode, work, atmosphere, awakening...
• - Grouping: Possibility to group several devices in a group or individually
• - Timer: Automatic switch-off programming
• - Falling asleep and waking up: The system can gradually turn on the designated lights for a gentle awakening, gradually decreasing the light intensity to prepare for bed
• - Music mode: the lighting reacts to the rhythm of the music

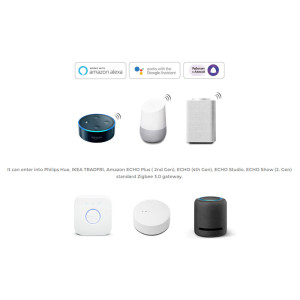

If you have a voice assistant, just ask Google or Alexa to turn the light on, off, dim or dim, or change colors.

The controller can be used in DMX thanks to the wireless adapter (optional) which plugs directly into your DMX console.

ZL5 Zigbee receiver manual
