D1-CX DMX controller manual
5-channel DMX led controller for dimmable RGB + white led strip
Ref : D5-CX [#157]
€25.00
5-channel DMX led controller for led strips, spots and multicolored projectors + RGBCCT variable white
Accessories to compose your kit
Accessoires controleurs
Amplifier allowing the use of up to 300 meters of cable and 128 devices without loss of DMX signal |
DMX signal amplifier 300 meters |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Multicolor + Variable White (RGB+CCT) |
| Controller type : | DMX |
| Controller only |

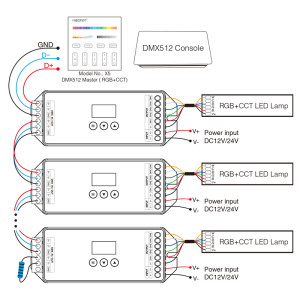

This controller connects to your DMX console (D+, D- and GND) and allows you to control spotlights, projectors and RGBCCT led strips.
Using the DMX512, DMX512 (1990), DMX512-A, RDM V1.0 (E1.20-2006 ESTA standard) standard, it is compatible with almost all DMX consoles or USB adapters on the market.
It uses 5 DMX channels to vary the light intensity from 0 (off) to 255 (full power) of red, green, blue, cool white and warm white to achieve a mixture of colors and tints of blanks up to 1000 billion variants.
The LED strip or the light is controlled in PWM (Pulse Width Modulation) at 12 or 24V.
It is possible to chain up to 32 controllers.
If the signal becomes too weak due to the lengths of cable used to transport the DMX signal, an amplifier must be added (see list of accessories).
The signal cannot be amplified more than 5 times.
The controller is equipped with protections against short circuits, reverse polarity and overloads.
Hardware guaranteed for 3 years.
| Power supply | 12 or 24V DC |
| Sealing | Not waterproof IP20 |
| Max power | 4A per channel, 20A total: 240W at 12V, 480W at 24V |
| Modulation | PWM, 2KHz |
| Input signal | DMX 512, RDM |
| Number of channels | 5 |
| Protections | short circuits, reverse polarity, overloads |

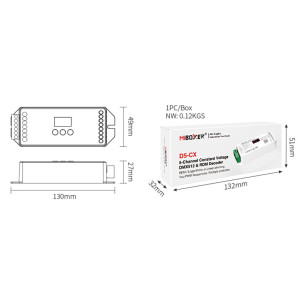

| Controller dimensions | 130 x 49 x 27mm |
| Temperature range | -20 to 60°C |
| Weight | 120 grams |
| Certifications | CE, RoHS |
| Warranty | 3 years |
