FUT035S Receiver Manual
12A controller for dual white led strips
Ref : FUT035S [#159]
€10.42

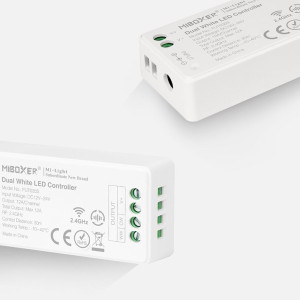

2.4 GHz 12A RF receiver.
Works with variable white led strips (CCT)
Accessories to compose your kit
Accessoires controleurs
Wifi adapter, Internet box and Google and Alexa voice assistants for Mi-light and Futlight controllers |
Wifi adapter and Google and Alexa voice assistants |
|
2.4 GHz wireless 4 zone wall remote control for dimmable white led controller |
2.4 GHz wireless 4 zone wall remote control for dimmable white led controller |
|
Wireless wall-mounted led dimmer with rotary knob. Communicates with 2.4 GHz wireless controllers. |
Rotary button wall remote control for 2.4 GHz wireless led dimmer |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Variable White (CCT) |
| Controller type : | Controller only |
| RF 2.4 GHz |
This controller is used to control led strips:
- - variable white (CCT)

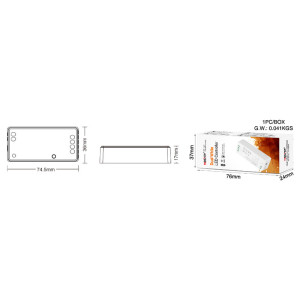

Small size case: 74.5 x 36 x 17 mm.
The receiver requires a remote control or wall dimmer (see essential accessories).
It accepts up to 12A, i.e. 144W at 12V, or 288W at 24V.
If the power of your light device exceeds that of the controller, it is possible to use several receivers or to use amplifiers.
If you want to use this controller over Wifi, in addition to the remote control, while benefiting from control by Google and Alexa voice assistants, you can add the Wifi adapter present in the list of accessories.
A single Wifi adapter can control several controllers, i.e. your entire lighting device.
Hardware guaranteed for 3 years.
| Input voltage | 12 or 24V DC |
| Output voltage | 12V or 24V DC |
| Output current | 12A per channel, 12A max total |
| Power | 144W max at 12V, 288W max at 24V |
| Sealing | Not waterproof IP20 |
| Signal | Radio frequency 2400 to 2483.5 MHz |
| Variation | PWM |
| Distance | 30 meters in free field |
| Dimensions | 74.5x36x17mm |
| Temperature range | -10 to 40°C |
| Weight | 41 grams |
| Certifications | CE, RoHS |
| Warranty | 3 years |
