FUT007 Remote Control Manual
4-zone LED remote control for dimmers and CCT controller
Ref : FUT007 [#171]
€6.35
4-zone LED remote control for dimmer or variable white controller
Works with white, single color and variable white headbands.
Accessories to compose your kit
Led strips accessories
2.4 GHz 12A RF receiver. |
12A controller for dual white led strips |
|
2.4GHz 12A RF receiver. Works with white or single color led strips |
12A controller for white or single color led strips |
|
WIFI + Bluetooth + RF 2.4 GHz 15A receiver. |
15A WIFI + RF controller for 1 color led strips, variable white, RGB, RGBW and RGB+CCT |
|
Wifi adapter, Internet box and Google and Alexa voice assistants for Mi-light and Futlight controllers |
Wifi adapter and Google and Alexa voice assistants |
|
Wifi and Zigbee gateway compatible with Google and Alexa voice assistants for Mi-light and Futlight Zigbee controllers |
Wifi and ZIGBEE adapter + Google and Alexa voice assistants |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Single color |
| Variable White (CCT) | |
| Controller type : | Remote control only |
| RF 2.4 GHz | |
| Multi zones : | Yes |
| Voice assistants : | No |
Remote control for white, single color or variable white LED strips that can manage 4 distinct zones.
Each zone can include an unlimited number of receivers.
The remote control works over a distance of 30 meters (in open space) and passes through walls.

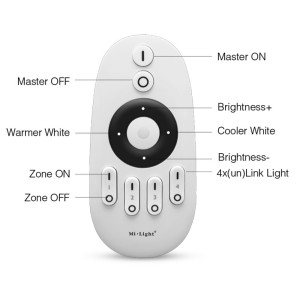

It allows you to turn on, turn off, vary the brightness and change the white shades of your lighting.
The remote control requires one or more receivers to be connected to the LED strips (see essential accessories).
Each receiver accepts up to 10A, i.e. 120W at 12V, or 240W at 24V.
If the power of your light device exceeds that of the controller, it is possible to use multiple receivers or to use 1-channel single color or 2-channel CCT amplifiers.
Equipment guaranteed for 3 years.
| Food | 2 AAA batteries (not included) |
| Communication | Radio frequency 2400 to 2483.5 MHz |
| Waterproofing | Not waterproof IP20 |
| Distance | 30 meters in open field |
| Remote control power supply | 2 AAA batteries (not included) |

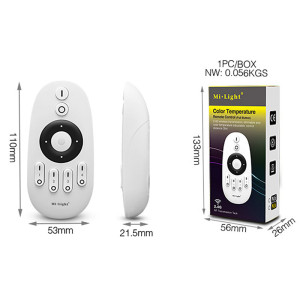

| Remote control dimensions | 110 x 53 x 21.5 mm |
| Temperature range | -10 to 40° C |
| Weight | 56 grams |
| Certifications | CE, RoHS |
| Guarantee | 3 years |
