15A controller for 1 color led strips, variable white, RGB, RGBW and RGB+CCT
Ref : RXRGBCCTLS2 [#23]
€13.33
2.4GHz 15A RF receiver.
Works with white, single color, RGB, RGBW and RGB+CCT led strips.
Accessories to compose your kit
Accessoires controleurs
8-zone LED remote control RGB + Variable white. Works with white, single color, variable white, RGB, RGBW and RGB + CCT strips. |
8-zone LED remote control RGB + CCT |
|
4-zone LED remote control RGB + Variable white. Works with white, single color, variable white, RGB, RGBW and RGB + CCT strips. |
4-zone LED remote control RGB + CCT |
|
Wifi adapter, Internet box and Google and Alexa voice assistants for Mi-light and Futlight controllers |
Wifi adapter and Google and Alexa voice assistants |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Single color |
| Variable White (CCT) | |
| Multicolor (RGB) | |
| Multicolor + Variable White (RGB+CCT) | |
| Multicolor + white (RGBW) | |
| Controller type : | Controller only |
| RF 2.4 GHz |
This controller is used to control led strips:
- - single color
- - variable white (CCT)
- - multicolor (RGB)
- - multicolor + white (RGBW)
- - multicolor + variable white (RGB+CCT)
The receiver requires a remote control (see essential accessories).
It accepts up to 15A, i.e. 180W at 12V, or 360W at 24V.
If the power of your light device exceeds that of the controller, it is possible to use several receivers or to use amplifiers.
If you wish to use this controller via Wifi, in addition to the remote control, while benefiting from control by Google and Alexa voice assistants, you can add the Wifi adapter present in the list of accessories.
A single Wifi adapter can control several controllers, i.e. your entire light device.

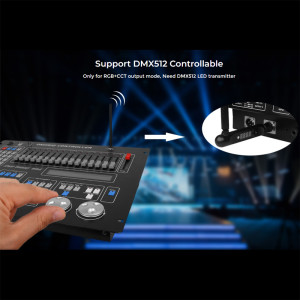

The controller can be used in DMX thanks to the wireless adapter (optional) which plugs directly into your DMX console.
Material guaranteed for 3 years.
| Input voltage | 12 or 24V DC |
| Output voltage | 12V or 24V DC |
| Output current | 6A per channel, 15A total |
| Power | 180W max in 12V, 360W max in 24V |
| Sealing | Not waterproof IP20 |
| Signal | Radio frequency 2400 to 2483.5 MHz |
| Distance | 30 meters in open field |
| Dimensions | 124 x 38 x 23 mm |
| Temperature range | -20 to 60 ° C |
| Weight | 60 grams |
| Certifications | CE, RoHS |
| Guarantee | 3 years |
