12A controller for RGB+CCT led strips
Ref : CTRLFUT039S [#25]
€10.42
2.4 GHz 12A RF receiver.
Works with RGB+CCT strips.
Accessories to compose your kit
Accessoires controleurs
4-zone LED remote control RGB + Variable white. Works with white, single color, variable white, RGB, RGBW and RGB + CCT strips. |
4-zone LED remote control RGB + CCT |
|
8-zone LED remote control RGB + Variable white. Works with white, single color, variable white, RGB, RGBW and RGB + CCT strips. |
8-zone LED remote control RGB + CCT |
|
Wifi adapter, Internet box and Google and Alexa voice assistants for Mi-light and Futlight controllers |
Wifi adapter and Google and Alexa voice assistants |
|
Wall-mounted remote control for lamps, spotlights and multicolor led controller (RGB) and color + variable white (RGBCCT). Control up to 8 zones. Communicates with 2.4 GHz wireless controllers. |
8 zone 2.4GHz wireless wall remote control for RGB/RGBCCT led controller |
|
Wall-mounted remote control for lamps, spotlights and multicolor led controller (RGB) and color + variable white (RGBCCT). Communicates with 2.4 GHz wireless controllers. |
2.4GHz wireless wall remote control for RGB/RGBCCT led controller |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Multicolor + Variable White (RGB+CCT) |
| Controller type : | Controller only |
| RF 2.4 GHz |
This controller is used to control led strips:
- - multicolor + variable white (RGB+CCT)

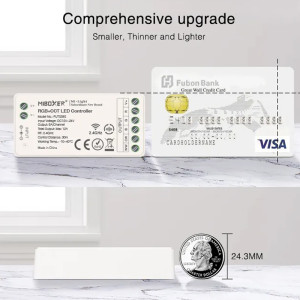

Small size case: 74.5 x 36 x 17mm.

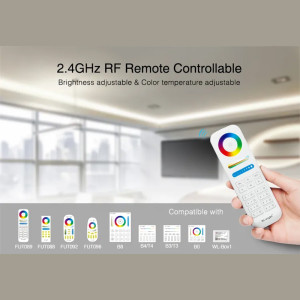

The receiver requires a remote control (see essential accessories).
It accepts up to 12A, i.e. 144W at 12V, or 288W at 24V.
If the power of your light device exceeds that of the controller, it is possible to use several receivers or to use amplifiers.
If you wish to use this controller via Wifi, in addition to the remote control, while benefiting from control by Google and Alexa voice assistants, you can add the Wifi adapter present in the list of accessories.
A single Wifi adapter can control several controllers, i.e. your entire light device.
Material guaranteed for 3 years.
| Input voltage | 12 or 24V DC |
| Output voltage | 12V or 24V DC |
| Output current | 6A per channel, 12A max in total |
| Power | 144W max in 12V, 288W max in 24V |
| Sealing | Not waterproof IP20 |
| Signal | Radio frequency 2400 to 2483.5 MHz |

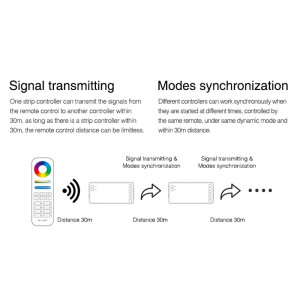

| Distance | 30 meters in open field |
| Dimensions | 74.5 x 36 x 17 mm |
| Temperature range | -20 to 60 ° C |
| Weight | 60 grams |
| Certifications | CE, RoHS |
| Guarantee | 3 years |
