Controller for dynamic effect led strips 300 programs
Ref : CTRLMINI358 [#71]Controller for led magic tapes (dynamic effects) 5, 12 and 24V, 300 programs, 2048 pixels
Products guaranteed for 3 or 5 years
Return within 14 days
Characteristics - Selection criteria
Strip type : | Dynamic effects |
Controller type : | With remote control |
Multi zones : | No |
Voice assistants : | No |
Controller for led strips with dynamic effects (Magic) 5, 12 and 24V.
It can control up to 2048 pixels, i.e. 102 meters of strip 60 LEDs / m per groups of 3 leds.
Warning: The controller has a power of 72W and can power a single 5 meter ribbon. It is possible to chain several other ribbons to obtain a continuous dynamic effect, but it is essential to supply the additional ribbons with 12V, each connecting them to the 12V power supply.
300 animations are available: rainbow, chasers etc ...
The radio frequency remote control works over a distance of 15 meters (in free field) and passes through walls.

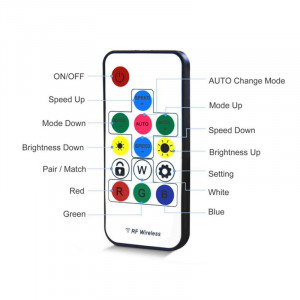

It allows you to turn on, turn off, change the programs and vary their speed.
The controller can be paired with a switch because it memorizes the state it was in before the shutdown. When restarting, the program initially in progress will resume.
The receiver unit is not waterproof and must be used away from splashing water or excessive humidity.
Input voltage | 5, 12 or 24V DC |
Output voltage | 5, 12 or 24V DC |
Output current | 6A max |
Power | 30W max in 5V, 72W in 12V, 144W max in 24V |
Waterproofing | Not waterproof IP20 |
Signal | Radio frequency |
Distance | 15 meters in free field |
Pilotage | WS2811 |
Number of pixels | 2048 |
Number of programs | 300 |
Remote control power supply | 1 CR2025 battery |
Controller dimensions | 80 x 14 x 8 mm |

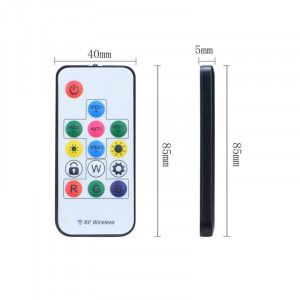

Remote control dimensions | 85 x 40 x 5 mm |
Temperature range | - 20 to 45 ° C |
Weight | 35 grams |
Certifications | CE, RoHS |
Guarantee | 3 years |
