Multicolored led strip with dynamic effects 60 leds/m - 1 led/pixel
Ref : SMAGIC60P-IP20 [#79]Multicolored Magic 5-meter led strip (dynamic effects) of 60 leds/m - 1 led/pixel
Accessories to compose your kit
Products guaranteed for 3 or 5 years
Return within 14 days
Multicolored RGB led strip with dynamic effects (Magic) allowing you to create a colorful atmosphere with active animations.
It allows you to obtain rainbow effects with gradients, chases, scrolls and a whole host of other animations.
Depending on the controller used, you can make the ribbon react to the rhythm of the music, and even program your own animations, à la carte.
This model is controlled by led (1 led per pixel) and gives smoother and more precise animations than the strips with 3 leds per pixel.
The strip requires the use of a specific controller for Magic led strips.
The tape is not waterproof and can only be used indoors, excluding wet rooms (kitchens, bathrooms).
The 10mm wide strip is powered by 12V DC and can be cut every 100mm.
Led strips of 5 meters can be chained together using the clip connectors provided. The animation will extend over the total length of the connected strips, with however the limitation of the number of pixels managed by the chosen controller (see the characteristics of the controller according to your total length of strips).

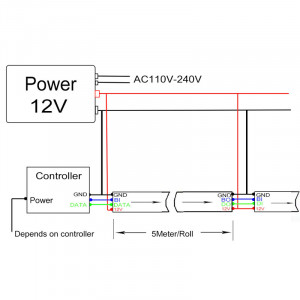

Important: Be sure to supply each 5-meter strip with 12V (by connecting them directly to the power supply) independently of the controller. See login photo.
Compose your kit ready to use
Strip only |
For the ribbon to work, you must have a power supply 12V 45W minimum. If you do not already have one, you must add a power supply to the essential accessories. Otherwise, you can acquire the ribbon alone. |
Power supply kit + ribbon + |
Minimal kit to make your led strip work. It connects to the 230V mains and the led strip to the 12/24V output of the power supply. Add the power supply to the list of accessories. |
Power supply kit + controller + ribbon + + |
To compose this kit, you must add to the accessories:
|
Power supply kit + Wifi dimmer + ribbon + + |
To compose this kit, you must add to the accessories:
|
Power supply kit + DMX dimmer + ribbon + + |
To compose this kit, you must add to the accessories:
3 channels are required to drive a single pixel, or 90 channels per meter for this ribbon. LTech brand controller intended for professionals for intensive and durable use. |
Choose waterproofing
IP20Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), excluding kitchens and bathrooms.IP65 Resists splashing water and damp environments. Can be installed in a kitchen, bathroom or outdoors.
IP68Immersible. Can be used in swimming pools, SPA or ponds.
Power supply voltage | 12V DC |
Led type | SMD5050 |
IC Type | WS2815 |
Number of leds per meter | 30 |
Number of CIs per meter | 30 |
Number of leds per pixel | 1 |
Colors | multicolor RGB |
Brightness | 580 Lumens per meter (in white) |
Efficacy | 80 Lumens per Watt |
Consumption | 7.2W per meter |
Dimmable | Yes (PWM) |
Attenuation | 2% after 6000 hours |
CRI | 80 |
Illumination angle | 120° |
Lifespan | 50000 hours (at 45°C) |
Sealing | Not waterproof IP20 |
Dimensions | 5000x10x2mm |
Cut | Every 100mm |
Temperature range | -25 to 45°C |
PCB | 1oz (35u) copper |
Adhesive | 3M VHB |
Certifications | CE, RoHS EN55015:2013/A1:2015 EN61547:2009 EN61000-3-2:2014 EN61000-3-3: 2013 |
Warranty | 5 years |
