Led strip for lighting 120 leds / m 856 Lumens / m waterproof
Ref : S1C3528-120-IP65 [#33]
€30.25

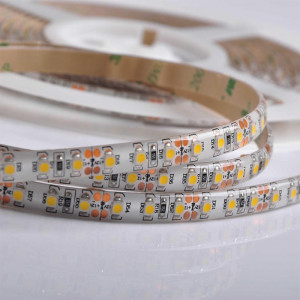

5 meter led strip SMD3528 12V 120 leds / m 865 Lumens / m waterproof IP65
Accessories to compose your kit
Led strips accessories
Transformer for led strips 12V 7A 84W on socket |
|
|
Led dimmer with remote control Radio frequency 12A |
Led dimmer with 144W remote control |
|
DMX led controller for white or single color led strips, spotlights and spotlights |
1 channel DMX led controller for white or single color led strip |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Ultra-low consumption : | No |
| Type of lighting : | Lighting |
| Color : | White |
| Single color | |
| Voltage : | 12V |
| Waterproof : | Waterproof IP65 |
| Lighting direction : | Front view |

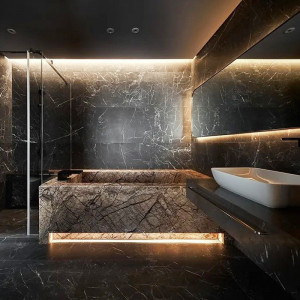

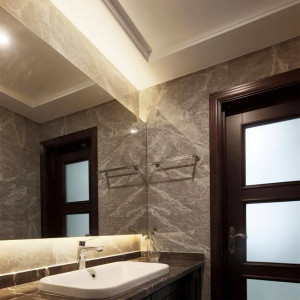

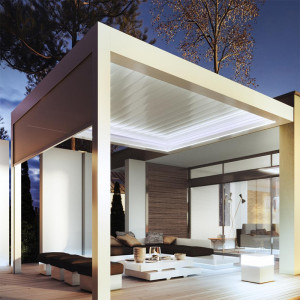

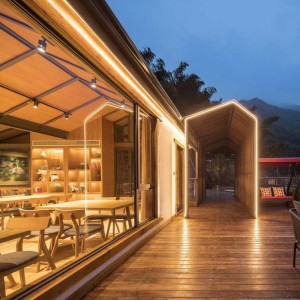

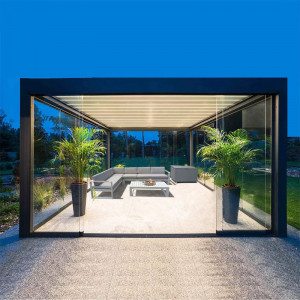

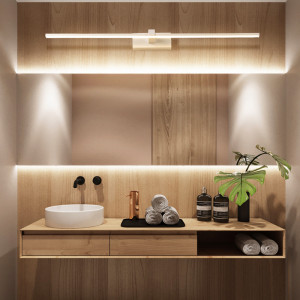

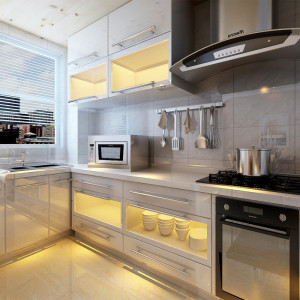

Realize the main lighting of a kitchen, a bathroom, a terrace, a pergola or a veranda.
For an optimal rendering, it is preferable to opt for indirect lighting (lighting towards the ceiling or on the sides) to avoid glare.
Indirect light is also much more comfortable and brings a touch of modernity to your home or to your exterior.
The strip is powered by 12V DC and can be cut in groups of 3 LEDs, or every 2.5 cm.
Waterproof, it can be used outdoors or in damp rooms.
Compose your ready-to-use kit
Ribbon only |
For the ribbon to work, you must have a 12V 60W minimum power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own. |
Power supply kit + ribbon + |
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply. Add the power supply to the list of accessories. |
Power supply kit + dimmer + ribbon +  + |
To compose this kit, you must add to the accessories:
|
Power supply kit + Wifi dimmer + ribbon +  + |
To compose this kit, you must add to the accessories:
|
Kit alimentation + variateur DMX + ruban +  + |
Pour composer ce kit, vous devez ajouter aux accessoires :
Contrôleur de marque LTech destiné aux professionnels pour usage intensif et durable. |
Choisir l'étanchéité
IP20Non étanche. Convient pour un usage en intérieur (salons, chambres, vérandas), hors cuisines et salles de bain.IP65Résiste aux éclaboussures d'eau et aux milieux humides. Peut être installé dans une cuisine, une salle de bain ou en extérieur.
IP68Immergeable. Peut être utilisé en piscines, SPA ou bassins.
Matériel garanti 5 ans destiné aux professionnels et aux particuliers pour un usage intensif.
| Tension alimentation | 12V DC |
| Type de led | SMD 3528 |
| Nombre de leds par mètre | 120 |

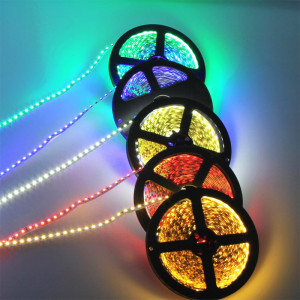

| Couleurs | Blanc naturel 5000K Blanc chaud 3000K, blanc froid 7000K rouge, vert, bleu, jaune, rose, violet, orange. |
| Luminosité | 865 Lumens par mètre (en blanc froid) 850 Lumens par mètre en blanc naturel 810 Lumens par mètre en blanc chaud |
| Efficacité | 90 Lumens per Watt |
| Consumption | 9.6W per meter |
| Dimmable | Yes (PWM) |
| Mitigation | 2% after 6000 hours |
| SHOUT | 80 |
| Illumination angle | 120 ° |
| Lifetime | 50,000 hours (at 45 ° C) |
| Sealing | Waterproof IP65 |
| Dimensions | 5000 x 8 x 3 mm |
| Cutout | Every 2.5 cm |
| Temperature range | -25 to 45 ° C |
| PCB | 1 oz (35u) copper |
| Adhesive | 3M VHB |
| Certifications | CE, RoHS EN60598-2-20: 2015 EN 60598-1: 2015 EN 62471: 2008 EN 62493: 2015 EN 62031: 2008 + A1: 2013 + A2: 2015 |
| Guarantee | 5 years |
Wiring of white ribbon with single color
ribbonsThese headbands, the simplest, only have 2 threads (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.
They can be coupled to a dimmer to turn on, off and vary the brightness with a remote control.
With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.
To overcome this, it is possible to have several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or to the controller.
Here is the wiring diagram of several bands with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.
Precautions to be taken when handling and installing an led tape
The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.
If you have to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between the 2 sections.
Do not bend the led strips or subject them to distortion:
Choosing a led strip
How to choose the led strip best suited to your needs?
To quickly and easily find the led strip that best suits
your lighting project, consult our guide
