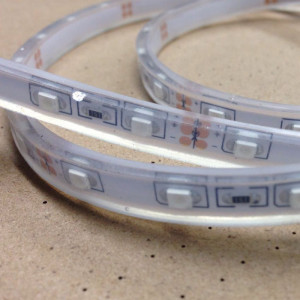

Ambience led tape 30 leds/m 160 Lumens/m immersed IP68

Ref : S1C3528-30-IP68 [#28]

Rating: Sign in to write a review

€29.84

Tax excluded

5 Meter LED-Streifen SMD3528 12V 30 LEDs / m 160 Lumen / m Tauch IP68

Accessories to compose your kit

Led strips accessories

	Driver for led strips 12V 2A 24W on socket	12V 2A 24W power supply €4.68
	Led dimmer with remote control Radio frequency 12A	Led dimmer with 144W remote control €16.87
	DMX led controller for white or single color led strips, spotlights and spotlights	1 channel DMX led controller for white or single color led strip €25.00

Products guaranteed for 3 or 5 years

Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Ultra-low consumption :	No
Type of lighting :	Atmosphere and decor
Color :	White
	Single color
Voltage :	12V
Waterproof :	Submersible IP68
Lighting direction :	Front view

This led strip is the most economical on the market due to its power consumption and low light (160 Lumens per meter in white).
It is intended for the mood lighting of a modern basin , jacuzzi or bathtub.

You can easily achieve your light atmosphere in white, or in a single color with this led strip.

The strip is powered by 12V DC and can be cut in groups of 3 LEDs, or every 10 cm.

Its IP68 waterproofing allows it to be submerged and is resistant to chlorine and salt water.
If the tape has to be cut, make sure it is completely watertight, for example using a special swimming pool silicone.

Its very low voltage in 12V allows the use of this led tape in swimming pool.

Compose your ready-to-use kit

Ribbon only	For the ribbon to work, you must have a 12V 15W minimum power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply kit + ribbon +	Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply. Add the power supply to the list of accessories.
Power supply kit + dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 dimmer with remote control Vous obtiendrez un kit complet fourni avec une télécommande pour allumer, éteindre et faire varier l'intensité lumineuse à l'aide de la télécommande radio-fréquence.
Kit alimentation + variateur Wifi + ruban + +	Pour composer ce kit, vous devez ajouter aux accessoires : - 1 alimentation - 1 variateur Wifi Avec ce kit complet, vous pourrez allumer, éteindre et faire varier l'intensité lumineuse en Wifi à l'aide de votre téléphone ou tablette.
Kit alimentation + variateur DMX + ruban + +	Pour composer ce kit, vous devez ajouter aux accessoires : - 1 alimentation - 1 variateur DMX Kit complet fonctionnant en DMX (hors console). Le contrôleur DMX permet d'allumer, éteindre et faire varier l'intensité lumineuse en fonction du signal envoyé par votre console DMX. 1 seul canal est nécessaire pour piloter le ruban led. Contrôleur de marque LTech destiné aux professionnels pour usage intensif et durable.

Choisir l'étanchéité

IP20Non étanche. Convient pour un usage en intérieur (salons, chambres, vérandas), hors cuisines et salles de bain.
IP65Résiste aux éclaboussures d'eau et aux milieux humides. Peut être installé dans une cuisine, une salle de bain ou en extérieur.
IP68Immergeable. Peut être utilisé en piscines, SPA ou bassins.

Equipment guaranteed for 5 years intended for professionals and individuals for intensive use.

Supply voltage	12V DC
Led type	SMD 3528
Number of leds per meter	30
Colors	Natural white 4000K Warm white 2700K, cold white 6000K red, green, blue, yellow.
Brightness	160 Lumens per meter (in white)
Efficiency	66 Lumens per Watt
Consumption	2.4W per meter
Dimmable	Yes (PWM)
Mitigation	2% after 6000 hours
SHOUT	80

Illumination angle	120 °
Lifetime	50,000 hours (at 45 ° C)
Sealing	IP68
Dimensions	5000 x 10 x 5 mm
Cutout	Every 10 cm
Temperature range	-25 to 45 ° C
PCB	1 oz (35u) copper
Adhesive	3M VHB
Certifications	CE, RoHS EN55015: 2013 / A1: 2015 EN61547: 2009 EN61000-3-2: 2014 EN61000-3-3: 2013
Guarantee	5 years

Wiring of white ribbon with single color ribbons

These headbands, the simplest, only have 2 threads (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.

Connection of a single color led tape on power supply

They can be coupled to a dimmer to turn on, off and vary the brightness with a remote control.

Connection of a single color led tape with dimmer

With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.

To overcome this, it is possible to have several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or to the controller.

Here is the wiring diagram of several bands with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.

Connection of 2 led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you have to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between the 2 sections.
