RGB LED strip long length from 5 to 15 meters for lighting and decoration 60 LEDs/m 600 Lumens/m

Ref : LONGRGB [#178]

Rating: Sign in to write a review

€59.00

Tax excluded

5 to 15 meter reel
No limitation to 5 meters
1 single power cable up to 15 meters of ribbon

Sealing

Length

Quantity

On demand. Shipping 20 to 30 days.

Products guaranteed for 3 or 5 years

Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Ultra-low consumption :	No
Type of lighting :	Atmosphere and decor
	Lighting
Color :	Multicolored (RGB)
Voltage :	24V
Waterproof :	Not waterproof
	Waterproof IP65
Strip type :	Multicolor (RGB)
Lighting direction :	Front view

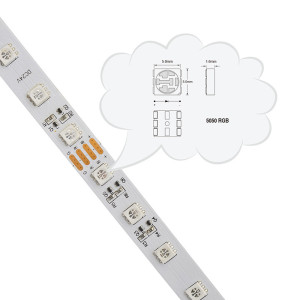

LED strip from 5 to 15 meters SMD5050 24V 600 LEDs/m 600 Lumens/m

RGB multicolor LED strip allowing you to create colorful lighting for a bedroom, a dressing room, a hallway, a staircase, or a small living room (25 m²). It can take the color you desire, including white.

The strip requires the use of an RGB controller to adjust the color and light intensity.

The 12 mm wide strip is powered by 24V DC and can be cut every 10 cm.

Unlike traditional LED strips that need to be powered every 5 meters, this model allows you to use just one cable for a length of up to 15 meters of LED strip.
If there are multiple sections, they can be connected in series for easier and faster installation.

Choose the waterproofing level

IP20Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), excluding kitchens and bathrooms.
IP65Resistant to water splashes and humid environments. Can be installed in a kitchen, bathroom, or outdoors.
IP68Submersible. Can be used in pools, spas, or ponds.

Material guaranteed for 5 years for professionals and individuals for intensive use.

Power supply voltage	24V DC
LED type	SMD 5050
Number of LEDs per meter	60
Brightness	600 Lumens per meter (in white)
Efficiency	55 Lumens per Watt
Consumption	11W per meter
Dimmable	Yes (PWM)
Attenuation	2% after 6000 hours
CRI	80

Lighting angle	120°
Lifespan	50000 hours (at 45°C)
Waterproofing level	IP20 or IP65
Dimensions	Lengths of 5, 10, or 15 meters. Width 12 mm, thickness 1.6 mm in IP20, 3 mm in IP65.
Cutting interval	Every 10 cm.
Temperature range	-25 to 45°C.
PCB material	1 oz (35u) copper.
Adhesive type	3M VHB.
Certifications	CE, RoHS EN60598-2-20:2015 EN 60598-1:2015 EN 62471:2008 EN 62493:2015 EN 62031:2008 +A1:2013 +A2:2015.
Warranty period	5 years

Wiring of multicolor RGB strips

This strip requires an RGB controller to be operated. It allows you to turn on, turn off, adjust the light intensity, and change colors, including white.

The four wires, black (+), red (R), green (G), and blue (B), should be connected as follows:

Wiring diagram for multiple strips with a total length exceeding 15 meters. The cable used has four wires (+, red (R), green (G), and blue (B).

Connection of two RGB LED strips in parallel with an amplifier

Precautions when handling and installing LED strips

LED strips can be bent along their length with a minimum radius of 5 cm. They should never be folded laterally.

If you need to make 90° angles, it is essential to cut the strip into sections and connect them either with an angle adapter or better, by soldering flexible cable (flat ribbon) between the two sections.
