Powerful flexible neon 360° 22 mm 240 leds/m 2035 Lumens/m
Ref : N1CD22-240-IP65 [#109]
€178.75

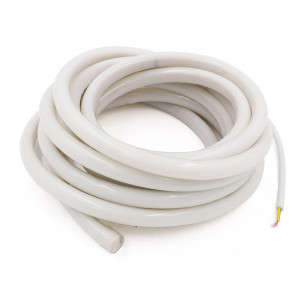

Powerful flexible neon of 5 meters, 22 mm, 240 leds/m, 2035 Lumens/m with 360° lighting, waterproof IP65
Accessories to compose your kit
Led strips accessories
Transformer for 24V 5A 120W led strips on terminal block |
|
|
Led dimmer with remote control Radio frequency 12A |
Led dimmer with 144W remote control |
|
Wifi adapter, Internet box and Google and Alexa voice assistants for Mi-light and Futlight controllers |
Wifi adapter and Google and Alexa voice assistants |
|
DMX led controller for white or single color led strips, spotlights and spotlights |
1 channel DMX led controller for white or single color led strip |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Ultra-low consumption : | No |
| Type of lighting : | Bright |
| Color : | White |
| Single color | |
| Voltage : | 24V |
| Waterproof : | Waterproof IP65 |
| Lighting direction : | 360° |
Flexible power neon illuminating 360° used for a bright illumination of 2035 Lumens per meter (in white).

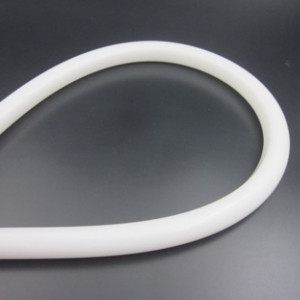

The light is well distributed thanks to the opaque structure of the neon.

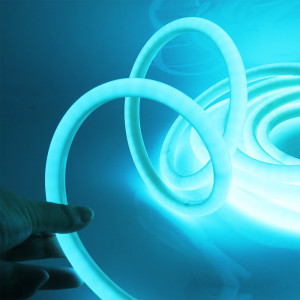

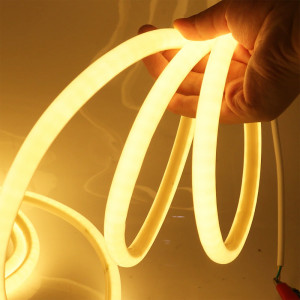

The neon can be bent lengthwise to achieve the desired shape.

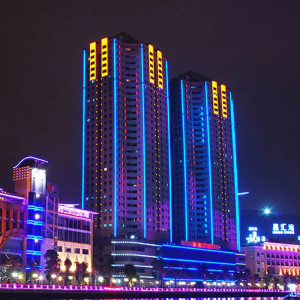

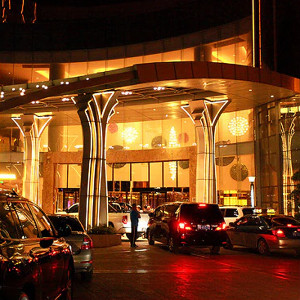

This type of neon is used both for lighting buildings indoors and outdoors, but also for decoration thanks to its strain-free shape.
Flexible neon lights do not have double faces. They should be fixed with the clips provided.
The strip is powered by 24V DC and can be cut in groups of 6 leds, i.e. every 5 cm.
Waterproof IP65, it can be used outdoors without any problem.
Compose your kit ready to use
Strip only |
For the ribbon to work, you must have a power supply 24V 120W minimum. If you do not already have one, you must add a power supply to the essential accessories. Otherwise, you can acquire the ribbon alone. |
Power supply kit + ribbon + |
Minimal kit to make your led strip work. It connects to the 230V mains and the led strip to the 12/24V output of the power supply. Add the power supply to the list of accessories. |
Kit power supply + drive + ribbon +  + |
To compose this kit, you must add to the accessories:
|
Power supply kit + Wifi dimmer + ribbon +  + |
To compose this kit, you must add to the accessories:
|
Power supply kit + DMX dimmer + ribbon +  + |
To compose this kit, you must add to the accessories:
LTech brand controller intended for professionals for intensive and long-lasting use. |
Choose waterproofing
IP20Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), excluding kitchens and bathrooms.IP65 Resists splashing water and damp environments. Can be installed in a kitchen, bathroom or outdoors.
IP68Immersible. Can be used in swimming pools, SPA or ponds.
Equipment guaranteed for 3 years intended for professionals and individuals for intensive use.
| Power supply voltage | 24V DC |
| Led type | SMD 2835 |
| Number of leds per meter | 240 |
| Colors | Natural White 4000K Warm White 2700K, Cool White 6000K Red, Green, Blue, Yellow, Purple |
| Brightness | 2035 Lumens per meter (in white) |
| Efficacy | 102 Lumens per Watt |
| Consumption | 20W per meter |
| Dimmable | Yes (PWM) |
| Attenuation | 2% after 6000 hours |
| CRI | 80 |
| Min curvature diameter | 25cm |
| Illumination angle | 360° |
| Lifespan | 50000 hours (at 45°C) |
| Sealing | Waterproof IP65 |
| Dimensions | 5000x22x22mm |
| Cut | Every 5cm |
| Temperature range | -25 to 60°C |
| PCB | 1oz (35u) copper |
| Fixings | 4 clips supplied per meter |
| Certifications | CE, RoHS EN IEC55015:2019 EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 EN 61547:2009 EN 60598-2-21:2015 EN 60598-1:2015+A1:2018 EN 62471:2008 EN 62493:2015 EN IEC 62031:2020 |
| Warranty | 3 years |

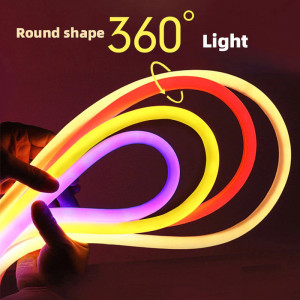

Flexible neon lights with 360° lighting
This type of tape, which is more expensive, has the advantage of providing 360° lighting.
The authorized curvature is 25 cm in diameter.

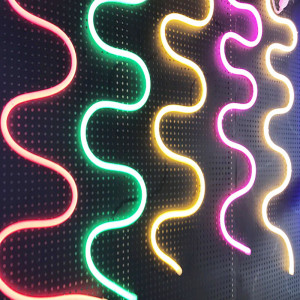

This model will marry all surfaces and can describe all the desired shapes, according to your imagination.
Wiring white and single color ribbons
These headbands, the simplest, have only 2 wires (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.
They can be paired with a dimmer to turn on, off and vary the brightness with a remote control.
With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.
To overcome this, it is possible to arrange several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or the controller.
Here is the wiring diagram of multiple strips with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.
Precautions to take when handling and installing a led strip
The led strips can be curved lengthwise by describing a minimum radius of 13 cm.
Under no circumstances can they be folded sideways.
If you need to make 90° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by welding flexible cable (flat cable) between the 2 sections.
Do not bend the led strips or distort them:
Choosing a led strip
How to choose the led strip best suited to your needs?
To quickly and easily find the led strip that best suits
your lighting project, consult our guide
