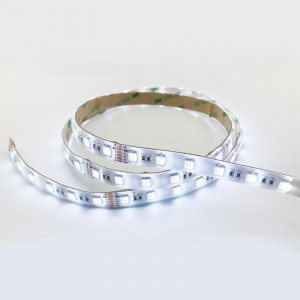

Multi-color led strip RGB + white variable 60 leds / m 5-in-1 780 Lumens / m waterproof
Ref : SRGBCCT60-IP65 [#68]
€71.64
Led strip of 5 meters 12V multicolored RGB + white variable 60 leds / m 5-in-1 780 Lumens / m, waterproof IP65
Accessories to compose your kit
Led strips accessories
Transformer for led strips 12V 12.5A 150W on terminal block |
|
|
Variable RGB + White led controller with 15A radio frequency remote control. |
RGB + CCT led controller with 15A remote control |
|
5-channel DMX led controller for led strips, spots and multicolored projectors + RGBCCT variable white |
5-channel DMX led controller for dimmable RGB + white led strip |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Ultra-low consumption : | No |
| Type of lighting : | Lighting |
| Color : | Multicolor + variable white |
| Voltage : | 12V |
| Waterproof : | Waterproof IP65 |
| Lighting direction : | Front view |

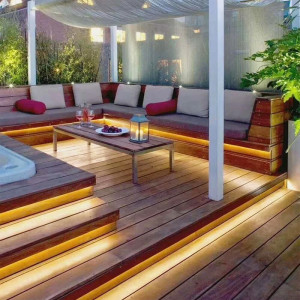

Led strip multicolored RGB + variable white CCT allowing to achieve colored mood lighting or with the desired shade of white of a kitchen, a bathroom or a terrace.
The mixture of RGB and variable white allows to obtain an infinite number of tints and colors.
The strip requires the use of an RGB + CCT controller to adjust the color, white tint and light intensity.
The tape is waterproof and can be used outdoors or in water features, except swimming pools, pools and jacuzzi.
The 12mm wide strip is powered by 12V DC and can be cut every 50mm.
Compose your ready-to-use kit
Ribbon only  |
For the ribbon to work, you must have a minimum 12V 110W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own. |
Power supply + ribbon kit  + |
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply. Add the power supply in the list of accessories. |
Power supply + controller + ribbon kit +  + |
To compose this kit, you must add to the accessories:
|
Power supply kit + Wifi dimmer + ribbon +  + |
To compose this kit, you must add to the accessories:
|
Power supply kit + DMX dimmer + ribbon +  + |
To compose this kit, you must add to the accessories:
LTech brand controller intended for professionals for intensive and durable use . |
Choose waterproofing
IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.
Material guaranteed for 5 years.
| Supply voltage | 12V DC |
| Type of led | SMD5050 |
| Number of leds per meter | 60 leds 5 in 1 |
| Colors | multicolor RGB + variable white |
| Brightness | 780 Lumens per meter (RGB in white + cool white + warm white) |
| Efficiency | 46 Lumens per Watt |
| Consumption | 16.8W per meter |
| Dimmable | Yes (PWM) |
| Attenuation | 2% after 6000 hours |
| CRI | 80 |
| Lighting angle | 120 ° |
| Lifetime | 50,000 hours (at 45 ° C) |
| Waterproofing | Waterproof IP65 |
| Dimensions | 5000 x 12 x 3 mm |
| Cutout | Every 50 mm |
| Temperature range | - 25 to 45 ° C |
| PCB | 1 oz (35u) copper |
| Adhesive | 3M VHB |
| Certifications | CE, RoHS EN55015: 2013 / A1: 2015 EN61547: 2009 EN61000-3-2: 2014 EN61000-3-3: 2013 |
| Guarantee | 5 years |
Las cintas RGB multicolor + blanco variable (RGBCCT)
Esta tira requiere un controlador variable RGB + blanco para funcionar. Te permite encender, apagar y variar la intensidad de la luz, los colores así como el matiz del blanco.
Los 6 hilos, negro (+), rojo (R), verde (G), azul (B), amarillo (blanco cálido/WW) y blanco (blanco frío/CW) se conectan de la siguiente manera:
Esquema de cableado para varias tiras cuya longitud total supere los 5 metros. El cable utilizado es de 6 hilos (+, rojo (R), verde (G), azul (B), blanco frío (CW) y blanco cálido (WW).
Precauciones a tener en cuenta al manipular e instalar una cinta led
Las tiras de led se pueden doblar longitudinalmente describiendo un radio de al menos 5 cm.
En ningún caso se podrán plegar hacia los lados.
No doble las tiras de led ni las someta a distorsión:
