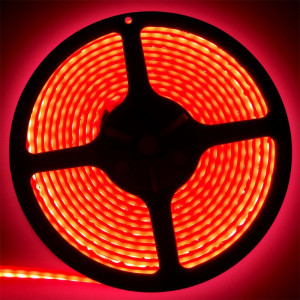

Multicolour led strip RGB + white variable 60 leds / m 5-in-1 780 Lumens / m Immersible

Ref : SRGBCCT60-IP68 [#70]

Rating: Sign in to write a review

€82.64

Tax excluded

Led strip of 5 meters 12V multicolored RGB + white variable 60 leds / m 5-in-1 780 Lumens / m, waterproof IP68

Accessories to compose your kit

Led strips accessories

	Transformer for led strips 12V 12.5A 150W on terminal block	Power supply 12V 12.5A 150W €15.72
	Variable RGB + White led controller with 15A radio frequency remote control.	RGB + CCT led controller with 15A remote control €30.89
	5-channel DMX led controller for led strips, spots and multicolored projectors + RGBCCT variable white	5-channel DMX led controller for dimmable RGB + white led strip €25.00

Products guaranteed for 3 or 5 years

Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Ultra-low consumption :	No
Type of lighting :	Lighting
Color :	Multicolor + variable white
Voltage :	12V
Waterproof :	Submersible IP68
Lighting direction :	Front view

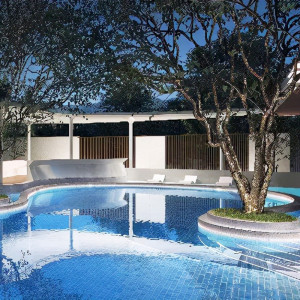

Led strip multicolored RGB + white variable CCT allowing to achieve colored mood lighting or with the desired shade of white for a swimming pool, a basin, an aquarium, a bathtub or a jacuzzi. The mixture of RGB and variable white allows to obtain an infinity of tints and colors.

It is totally submersible (IP68) and provided with silicone resistant to water and chlorine.
It does not yellow over time and does not crack.

For an optimal rendering, the tape can be installed under the coping with downward lighting, or better, with an angle of 45 ° allowing to light at the same time the bottom and the center of the swimming pool.
Such a rendering can be done using a 45 ° angle aluminum profile.

The band is supplied with 12V DC, very low voltage compulsory for the use of electrical devices in swimming pools.

It can be cut in groups of 3 LEDs, or every 5 cm.

The 230V / 12V power supply must be installed in a room sheltered from bad weather, in the technical room for example.
The optional dimmers or controllers are not waterproof and must be installed near the power supply (technical room).

If the tape is cut, it is imperative to ensure a total seal by using specific end pieces, glued with special swimming pool silicone.
IP68 led tapes can be custom made, to your diemsnions, directly at the factory. Allow 2 to 3 weeks for completion.

The strip requires the use of an RGB + CCT controller to adjust the color, white tint and light intensity.

Compose your ready-to-use kit

Ribbon only	For the ribbon to work, you must have a minimum 12V 110W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit +	Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply. Add the power supply in the list of accessories.
Power supply + controller + ribbon kit + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGB + CCT controller with remote control You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 Wifi controller With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGB DMX controller Complete kit working in DMX (except console). The DMX controller allows you to turn on, off and vary the light intensity, colors and shades of white according to the signal sent by your DMX console. 5 channels are required to drive the led strip. LTech brand controller intended for professionals for intensive and durable use .

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Material guaranteed for 3 years.

Supply voltage	12V DC

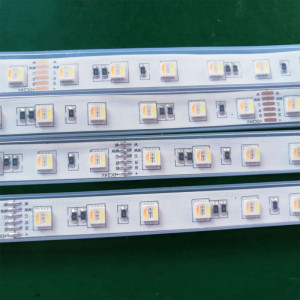

Type of led	SMD5050
Number of leds per meter	60 leds 5 in 1
Colors	multicolor RGB + variable white
Brightness	780 Lumens per meter (RGB in white + cool white + warm white)
Efficiency	46 Lumens per Watt
Consumption	16.8W per meter
Dimmable	Yes (PWM)
Attenuation	2% after 6000 hours
CRI	80

Lighting angle	120 °
Lifetime	50,000 hours (at 45 ° C)
Waterproofing	Waterproof IP68
Dimensions	5000 x 17 x 5 mm
Cutout	Every 50 mm
Temperature range	- 25 to 45 ° C
PCB	1 oz (35u) copper
Adhesive	3M VHB
Certifications	CE, RoHS EN55015: 2013 / A1: 2015 EN61547: 2009 EN61000-3-2: 2014 EN61000-3-3: 2013
Guarantee	3 years

The ribbons RGB multicolored + white variable (RGBCCT)

This strip requires a variable RGB + white controller to be driven. It allows you to turn on, off, and vary the light intensity, the colors as well as the tint of white.

The 6 wires, black (+), red (R), green (G), blue (B), yellow (warm white / WW) and white (cold white / CW) are to be connected as follows:

Connection of a variable RGB + white led tape

Wiring diagram for several strips whose total length exceeds 5 meters. The cable used is 6 wires (+, red (R), green (G), blue (B), cold white (CW) and warm white (WW).

Connection of 2 RGB + white led strips variable in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between them. 2 sections.
