Multi-color RGB led strip 60 leds / m 720 Lumens / m waterproof

Ref : SRGB60-IP65 [#62]

Rating: Sign in to write a review

€36.99

Tax excluded

5 meters SMD5050 12V multicolor RGB led strip 60 leds / m 720 Lumens / m, waterproof IP65

Accessories to compose your kit

Led strips accessories

	Transformer for led strips 12V 7A 84W on socket	Power supply 12V 7A 84W €14.58
	RGB led controller with 10A Radio frequency remote control	RGB led controller with 10A remote control €15.08
	3-channel DMX led controller for led strips, spotlights and multicolored RGB projectors	3-channel DMX led controller for RGB led strip €25.00

Products guaranteed for 3 or 5 years

Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Ultra-low consumption :	No
Type of lighting :	Lighting
Color :	Multicolored (RGB)
Voltage :	12V
Waterproof :	Waterproof IP65
Lighting direction :	Front view

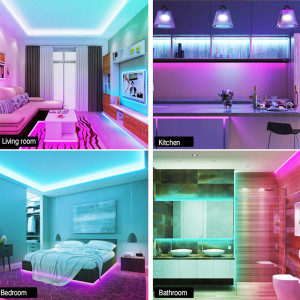

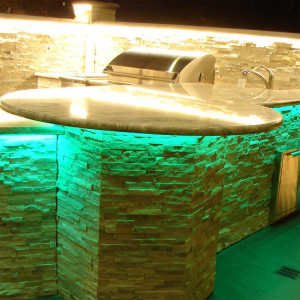

Multicolored RGB led tape for creating colored lighting for a veranda, pergola, terrace, outdoor staircase, kitchen or bathroom. It can take any color you want, including white.

The headband requires the use of an RGB controller to adjust the color and light intensity.

The tape is waterproof and can be used outdoors, outside swimming pools, pools and jacuzzi.

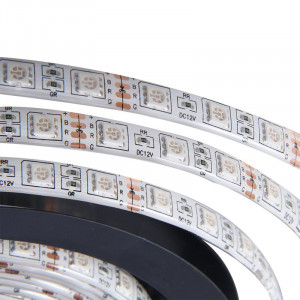

The 10mm wide strip is powered by 12V DC and can be cut every 50mm.

Compose your ready-to-use kit

Ribbon only	For the ribbon to work, you must have a minimum 12V 90W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit +	Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply. Add the power supply in the list of accessories.
Power supply + controller + ribbon kit + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGB controller with remote control You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 Wifi controller With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGB DMX controller Complete kit working in DMX (except console). The DMX controller allows you to switch on, off and vary the light intensity according to the signal sent by your DMX console. 3 channels are needed to drive the led strip. LTech brand controller intended for professionals for intensive and durable use .

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Hardware guaranteed for 5 years.

Supply voltage	12V DC
Type of led	SMD5050
Number of leds per meter	60
Colors	multicolor RGB
Brightness	720 Lumens per meter (in white)
Efficiency	50 Lumens per Watt
Consumption	14.4W per meter
Dimmable	Yes (PWM)
Attenuation	2% after 6000 hours
CRI	80

Lighting angle	120 °
Lifetime	50,000 hours (at 45 ° C)
Waterproofing	Waterproof IP65
Dimensions	5000 x 10 x 3 mm
Cutout	Every 50 mm
Temperature range	- 25 to 45 ° C
PCB	1 oz (35u) copper
Adhesive	3M VHB
Certifications	CE, RoHS EN55015: 2013 / A1: 2015 EN61547: 2009 EN61000-3-2: 2014 EN61000-3-3: 2013
Guarantee	5 years

Wiring of RGB multicolored ribbons

This strip requires an RGB controller to be driven. It allows you to turn on, off, and vary the light intensity as well as the colors, including white.

The 4 wires, black (+), red (R), green (G) and blue (B) are to be connected as follows:

Wiring diagram for several strips whose total length exceeds 5 meters. The cable used is 4 wires (+, red (R), green (G) and blue (B).

Connection of 2 RGB led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between them. 2 sections.
