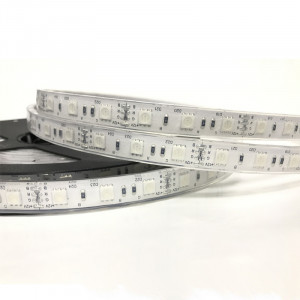

Multicolored RGB led strip for pool lighting 60 leds / m 720 Lumens / m waterproof IP68

Multicolored RGB led tape for swimming pool , basin , bathtubs , showers and Jacuzzi lighting .
It is totally immersible (IP68) and provided with silicone resistant to water and chlorine.
It does not yellow over time and does not crack.

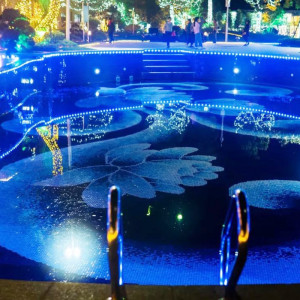

For an optimal rendering, the tape can be installed under the coping with downward lighting, or better, with an angle of 45 ° allowing to illuminate at the same time the bottom and the center of the swimming pool.
Such a rendering can be done using a 45 ° angle aluminum profile.

The band is supplied with 12V DC, very low voltage compulsory for the use of electrical devices in swimming pools.

It can be cut in groups of 3 LEDs, or every 5 cm.

The 230V / 12V power supply must be installed in a room sheltered from bad weather, in the technical room for example.
The optional dimmers or controllers are not waterproof and must be installed near the power supply (technical room).

If the tape is cut, it is imperative to ensure a total seal by using specific end pieces, glued with special swimming pool silicone.
IP68 led tapes can be custom made, to your diemsnions, directly at the factory. Allow 2 to 3 weeks for completion.

Compose your ready-to-use kit

Ribbon only	For the ribbon to work, you must have a minimum 12V 90W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit +	Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply. Add the power supply in the list of accessories.
Power supply + controller + ribbon kit + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGB controller with remote control You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 Wifi controller With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGB DMX controller Complete kit working in DMX (except console). The DMX controller allows you to switch on, off and vary the light intensity according to the signal sent by your DMX console. 3 channels are needed to drive the led strip. LTech brand controller intended for professionals for intensive and durable use .

Wiring of RGB multicolored ribbons

This strip requires an RGB controller to be driven. It allows you to turn on, off, and vary the light intensity as well as the colors, including white.

The 4 wires, black (+), red (R), green (G) and blue (B) are to be connected as follows:

Wiring diagram for several strips whose total length exceeds 5 meters. The cable used is 4 wires (+, red (R), green (G) and blue (B).

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between them. 2 sections.

Do not bend the led strips or subject them to distortion:
