Fruit growth led strip ratio 5 red 1 blue waterproof IP65

Ref : SGRW515050-60-IP65 [#103]

Rating: Sign in to write a review

€73.21

Tax excluded

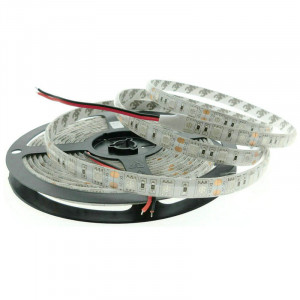

Horticultural LED tape 5 meters 24V ratio 5 red 1 blue, waterproof (IP65)

Accessories to compose your kit

Led strips accessories

	Transformer for 24V 5A 120W led strips on terminal block	24V 5A 120W power supply €11.46
	Led dimmer with remote control Radio frequency 12A	Led dimmer with 144W remote control €16.87
	DMX led controller for white or single color led strips, spotlights and spotlights	1 channel DMX led controller for white or single color led strip €25.00

Products guaranteed for 3 or 5 years

Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Ultra-low consumption :	No
Type of lighting :	Lighting
Color :	Horticultural
Voltage :	24V
Waterproof :	Waterproof IP65
Lighting direction :	Front view

Led strip for indoor hydroponics promoting fruit growth (strawberries, tomatoes, raspberries ...).

It is made up of 5 red LEDs (660 nanometers), alternated with a blue LED (450 nanometers).

It is supplied with 24V DC and can be cut in groups of 3 LEDs, or every 50 mm.

Waterproof IP65, it can be used in humid environment.

Compose your ready-to-use kit

Ribbon only	For the ribbon to work, you must have a minimum 24V 90W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit +	Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 24V output of the power supply. Add the power supply in the list of accessories.
Power supply + drive + ribbon kit + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 dimmer with remote control You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 controller> Wifi With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 DMX dimmer Complete kit working in DMX (except console). The DMX controller allows you to switch on, off and vary the light intensity according to the signal sent by your DMX console. Only 1 channel is needed to drive the led strip. LTech brand controller intended for professionals for intensive and durable use .

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Equipment guaranteed for 5 years intended for professionals and individuals for intensive use.

Supply voltage	24V DC
Type of led	SMD 5050
Number of leds per meter	60
Colors	5 red 660 nm, 1 blue 450 nm
Brightness	-
Efficiency	-
Consumption	14.4W per meter
Dimmable	Yes (PWM)
Attenuation	2% after 6000 hours
CRI	-

Lighting angle	120 °
Lifetime	50,000 hours (at 45 ° C)
Waterproofing	Waterproof IP65
Dimensions	5000 x 10 x 3 mm
Cutout	Every 50 mm
Temperature range	- 25 to 45 ° C
PCB	1 oz (35u) copper
Adhesive	3M VHB
Certifications	CE, RoHS EN55015: 2013 / A1: 2015 EN61547: 2009 EN61000-3-2: 2014 EN61000-3-3: 2013
Guarantee	5 years

Wiring of horticultural ribbons

These headbands, the simplest, only have 2 threads (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.

Connection of a single color led tape on power supply

They can be coupled to a dimmer to turn on, off and vary the brightness with a remote control.

Connection of a single color led tape with dimmer

With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.

To overcome this, it is possible to have several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or to the controller.

Here is the wiring diagram of several bands with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.

Connection of 2 led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between them. 2 sections.
