Led strip with lateral lighting 120 leds/m 1000 Lumens/m waterproof IP65
Ref : SV1C3014-120-IP65 [#116]
€52.53
5 meter led strip with side lighting SMD3014 12V 120 leds/m 1000 Lumens/m not waterproof IP20
Accessories to compose your kit
Led strips accessories
Transformer for led strips 12V 7A 84W on socket |
|
|
Led dimmer with remote control Radio frequency 12A |
Led dimmer with 144W remote control |
|
DMX led controller for white or single color led strips, spotlights and spotlights |
1 channel DMX led controller for white or single color led strip |
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Ultra-low consumption : | No |
| Type of lighting : | Lighting |
| Color : | White |
| Voltage : | 12V |
| Waterproof : | Waterproof IP65 |
| Lighting direction : | Side view |
This led strip has the particularity of lighting from the side and not from the front like on a classic strip.

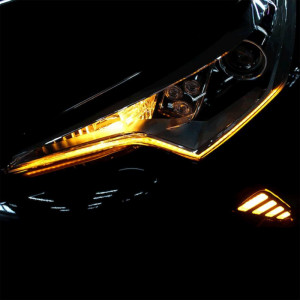

It is used for vehicle headlights or when lighting must be done on the side of the band.
With its brightness of up to 1000 Lumens per meter, the tape can be used as main lighting, or as mood lighting by using a dimmer to reduce its brightness.
The strip is powered by 12V DC and can be cut in groups of 3 LEDs, i.e. every 2.5 cm.
Waterproof, it can be used both indoors and outdoors, or in car headlights.
It can also be used in damp rooms, but must not be immersed.
Compose your kit ready to use
Strip only |
For the ribbon to work, you must have a power supply 12V 100W minimum. If you do not already have one, you must add a power supply to the essential accessories. Otherwise, you can acquire the ribbon alone. |
Power supply kit + ribbon + |
Minimal kit to make your led strip work. It connects to the 230V mains and the led strip to the 12/24V output of the power supply. Add the power supply to the list of accessories. |
Kit power supply + drive + ribbon +  + |
To compose this kit, you must add to the accessories:
|
Power supply kit + Wifi dimmer + ribbon +  + |
To compose this kit, you must add to the accessories:
|
Power supply kit + DMX dimmer + ribbon +  + |
To compose this kit, you must add to the accessories:
LTech brand controller intended for professionals for intensive and long-lasting use. |
Choose waterproofing
IP20Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), excluding kitchens and bathrooms.IP65 Resists splashing water and damp environments. Can be installed in a kitchen, bathroom or outdoors.
IP68Immersible. Can be used in swimming pools, SPA or ponds.
Equipment guaranteed for 5 years intended for professionals and individuals for intensive use.
| Power supply voltage | 12V DC |
| Led type | SMD 3014 |
| Number of leds per meter | 120 |
| Colors | Natural white 4000K Warm white 3000K, cool white 6000K |
| Brightness | 1000 Lumens per meter (in cool white) 840 Lumens per meter in warm white |
| Efficacy | 69 Lumens per Watt |
| Consumption | 14.4W per meter |
| Dimmable | Yes (PWM) |
| Attenuation | 2% after 6000 hours |
| CRI | 80 |
| Illumination angle | 120° |
| Lifespan | 50000 hours (at 45°C) |
| Sealing | Waterproof IP65 |

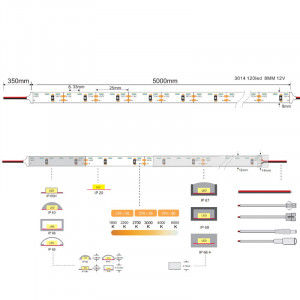

| Dimensions | 5000x8x2mm |
| Cut | Every 2.5cm |
| Temperature range | -25 to 45°C |
| PCB | 1oz (35u) copper |
| Adhesive | 3M VHB |
| Certifications | CE, RoHS EN60598-2-20:2015 EN 60598-1:2015 EN 62471:2008 EN 62493:2015 EN 62031:2008 +A1:2013 +A2:2015 |
| Warranty | 5 years |
Wiring white and single color
ribbonsThese headbands, the simplest, have only 2 wires (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.
They can be paired with a dimmer to turn on, off and vary the brightness with a remote control.
With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.
To overcome this, it is possible to arrange several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or the controller.
Here is the wiring diagram of multiple strips with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.
Precautions to take when handling and installing a led strip
The led strips can be curved lengthwise by describing a minimum radius of 5 cm.
Under no circumstances can they be folded sideways.
If you need to make 90° angles, it is essential to cut the tape in sections and connect them, either with a suitable angle connector, or better, by welding flexible cable (flat cable) between the 2 sections.
Do not bend the led strips or distort them:
Choosing a led strip
How to choose the led strip best suited to your needs?
To quickly and easily find the led strip that best suits
your lighting project, consult our guide
