Led tape RGBW wall washer 42 leds / m 540 Lumens / m waterproof

This led tape is fitted with special lenses to achieve a Wall washer effect.

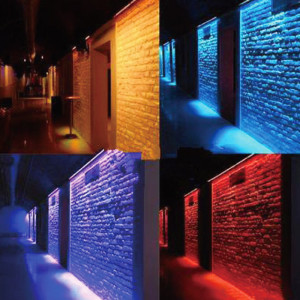

It allows mood lighting on a facade or a wall up to a height of 3 meters, thanks to its lighting angle of 30 °.
The strip is equipped with 4 in 1 RGBW LEDs, which allows you to mix colors with white.
The advantage is to obtain even more choice in the colors, and an increased luminosity compared to the traditional RGB.

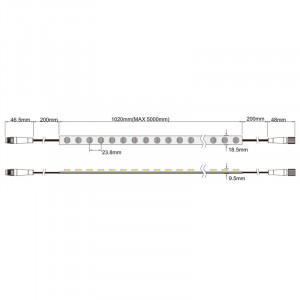

The strip is supplied with 24V DC and can be cut every 166.6 mm.

Waterproof IP67, it can be used both indoors and outdoors.
Not suitable for swimming pools, ponds and other places where the strip is submerged.

The banner can be installed:

• - With 3M double-sided tape (interior only)
• - With silicone screw clips (10 per tape)
• - With metal screw fasteners (10 per tape)
• - With screw-on aluminum profiles (5 bars of 1 meter)
• - With profiles + adjustable angle fixings ( Optimal solution recommended ). 5 bars of 1 meter + 10 fixings.

The lighting height depends on the installation distance:

• - 5 cm from the wall for 1.50 meter lighting
• - 10 cm from the wall for lighting over 2.00 meters
• - 20 cm from the wall for lighting over 2.50 meters
• - 30 cm from the wall for lighting over 3.00 meters

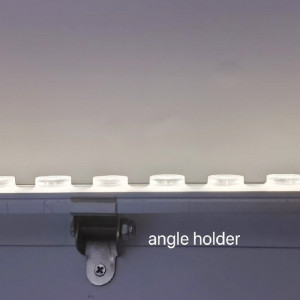

Angle adjustable brackets (optional) allow easy adjustment of wall lighting.

This led strip requires an RGBW controller to be able to be driven.

Compose your ready-to-use kit

Ribbon only	For the ribbon to work, you must have a power supply 24V 50W minimum. If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit +	Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 24V output of the power supply. Add the power supply in the list of accessories.
Power supply + controller + ribbon kit + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGBW controller with remote control You will get a complete kit supplied with a remote control to turn on, off, vary the light intensity and change colors using the radio-frequency remote control.
Power supply kit + Wifi controller + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGBW Wifi controller With this complete kit, you will be able to turn on, off, vary the light intensity and change colors in Wifi using your phone or tablet.
Power supply kit + DMX controller + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 DMX controller Complete kit working in DMX (except console). The DMX controller allows you to turn on, off, vary the light intensity and change the colors according to the signal sent by your DMX console. 4 channels are needed to drive the led strip. LTech brand controller intended for professionals for intensive and durable use .

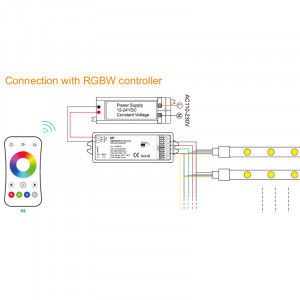

Wiring multicolored ribbons RGB + white (RGBW)

This strip requires an RGBW controller to be driven. It allows you to turn on, off, and vary the light intensity as well as the colors and white.

The 5 wires, black (+), red (R), green (G), blue (B) and white (W) are to be connected as follows:

Wiring diagram for several strips whose total length exceeds 5 meters. The cable used is 5 wires (+, red (R), green (G), blue (B) and white (W).

Precautions to be taken when handling and installing an led tape

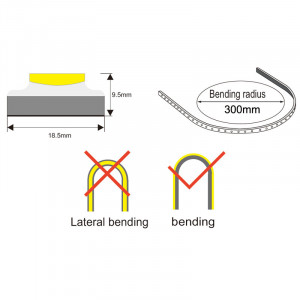

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between them. 2 sections.

Do not bend the led strips or subject them to distortion:
